Device Configuration Guides
Sipura SPA-3000

The SPA-3000 features VoIP adapter functionality found in the SPA-3000 with the additional benefit of an integral connection for legacy telephone network “hop-on, hop-off” applications. SPA-3000 users will be able to leverage their broadband phone service connections more than ever by automatically routing local calls from cell phones and land lines to a VoIP service provider and vice versa.

A typical user calling from a land line or mobile phone will be able to reduce and even eliminate international and long distance telephone charges by first calling their SPA-3000 via a local phone number or by using a telephone connected directly to the unit. The advanced authentication and call routing intelligence programmed into the SPA-3000 will connect the caller via the Internet to the far end destination with security and ease. Using the SPA-3000 at the far end, calls can be answered immediately or further processed as a local call to any legacy land line or mobile phone allowed by the SPA-3000 dial plan.

If power is lost to the unit or the VoIP service is down, calls can be sent to a traditional carrier via the FXO interface.

NOTE: We have seen instances where installing the SPA-3000 behind a firewall which blocks ICMP packets causes problems with registration. Try turning off any ICMP blocking on your firewall.



STEP 1

You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack and dial:
                         **** (four asterisks)

then dial:           110 #

and you will be told the IP address of your device (e.g. 192.168.0.100)

STEP 2

Go to any browser equipped computer on your network and enter the address: http://<IP ADDRESS>/
(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1.


STEP 3

Click on the "Admin Login" button near the top right side of the screen, then click on the "Line 1" tab.


STEP 4

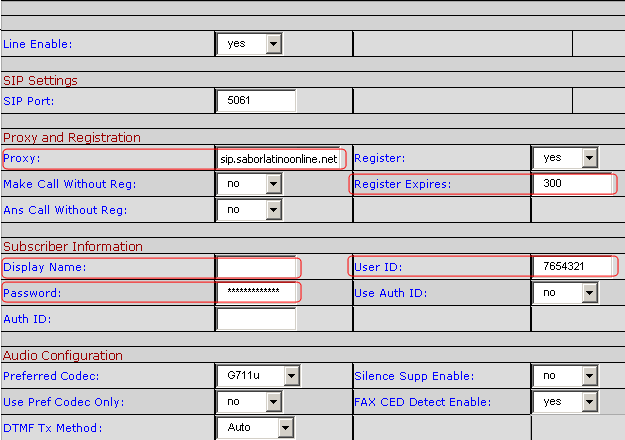

You need to modify only a few parameters from the factory default. They are listed here:

Proxy:   sip.saborlatinoonline.net
Display Name:   Enter your Full name, this will show up as part of your callerid.
User ID:   Enter the phone number you chose when you signed up for our service.
Password:

Enter the password that you chose when you signed up for our service.


STEP 5

Click on “PSTN Line” Tab.

Modify only the circled items of the following:

Proxy:

sip.saborlatinoonline.net

Register Expires:   300
Display Name:   Enter your full name.
Userid:   Enter the phone number you chose when you signed up for our service.
Password:   Enter the password that you chose when you signed up for our service.


STEP 6

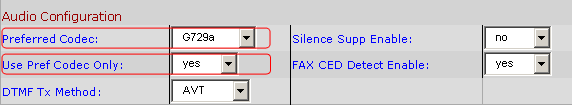

Change the “Preferred Codec” to G729a. Also change the “Use Pref Codec Only” to Yes. You can do this for both Line 1 and PSTN (i.e. if you are going to use PSTN).


STEP 7

Click on the "Submit All Changes" button at the bottom of the form.


STEP 8

Make calls!

Note to Members: If you own a SPA 3000 and have questions, go to http://www.sipura.com/support/spa3000faq/index.htm
