Device Configuration Guides
Cisco ATA 186/188

This hard phone is actually an ATA (analog telephone adaptor). It enables you to connect your POTS (plain old telephone system) phones to the Internet. Think of it as a phone jack for VoIP. It has one ethernet port and two RJ11 phone jacks. It is fairly easy to configure. Out of the box, it is configured for DHCP. This means that it gets its IP address from your DHCP server automatically. Full documentation can be found at Cisco's Site.

Since Sabor Latino Online works only with SIP protocol, you need to make sure that you are running the correct SIP firmware on your phone. The latest version is 3.0 and can be found here.

STEP 1

You may first want to reset your unit to factory default setting. To do this, pick up the phone handset attached to the Line 1 jack and press the illuminated red button.

Dial: 322873738#

then dial  and hang up.

NOTE: this will completely reset the unit to factory default settings, erasing any values that may already exist!


STEP 2

Now, again pick up the phone handset and press the red button, then

Dial: 21 #

and you will be told the IP address of your device (e.g. 192.168.0.100).


STEP 3

Go to any browser equipped computer on your network and enter the address: http://<IP ADDRESS>/dev
(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1.


STEP 4

You need to modify only a few parameters from the factory default. They are listed here:

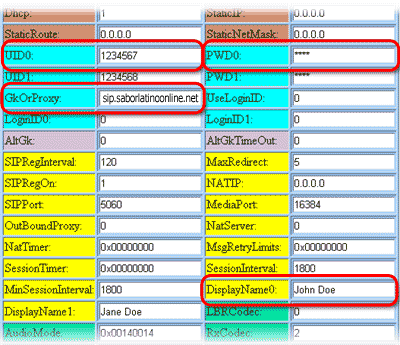

Cisco-ATA186 configuration screen

UID0

Enter the phone number you chose when you signed up for our service.
PWD0   Enter the password that you chose when you signed up for our service.
GkOrProxy   sip.saborlatinoonline.net
DisplayName0   Enter your full name. This will show up as part of your callerid.

STEP 5

Click on the "apply" button on the bottom of the form.

Apply

STEP 6

Make calls!
